Volvo FL Specifications

Everything you need to know about the Volvo FL, in glorious detail.

Powertrain

Find specifications about engines, transmissions, rear axles (including ratios), powertrain combinations and power take-offs.

Medium Duty Electric – power/torque



D5 – power/torque


Net output according to: EC 582/2011

D8 – power/torque


Net output according to: EC 582/2011

Electric​

Volvo FL

Performance

Up to 180 kW (240 hp) continuous power

Range​

Up to 450 km

Charging time (full charge​)

8 h with AC (43 kW) 2.3 h with DC (150kW)

Battery capacity

280–565 kWh, 3–6 batteries


Diesel

D5

D8

Emission standard

Euro 6

Euro 6

No. of cylinders

4

6

Displacement

5.1 dm³

7.7 dm³

Stroke

135 mm

135 mm

Bore

110 mm

110 mm

Compression ratio

17.5:1

17.5:1

Economy revs

1100–1800 r/min

1000–1700 r/min

Exhaust braking effect

80 kW (2800 r/min)

120 kW (2800 r/min)

Compression brake effect*

–

170 kW (2800 r/min)

Oil filters

1

1

Oil change volume, incl. filter

15 l

20 l

Cooling system, total volume

13 l

17 l



* option





 D5 210 hp (154 kW)






Max power at 2200 r/min

210 hp




Max torque at 1100–1700 r/min

800Nm




D5 240 hp (177 kW)*






Max power at 2200 r/min

240 hp




Max torque at 1200–1600 r/min

900 Nm



*available with B100, biodiesel





D8 250 hp (184 kW)






Max power at 2100 r/min

250 hp




Max torque at 900–1700 r/min

950 Nm




D8 280 hp (206 kW)






Max power at 2100 r/min

280 hp




Max torque at 950–1700 r/min

1050 Nm




D8 320 hp  (235 kW)*




Max power at 2100 r/min

320 hp


Max torque at 1050–1600 r/min

1200 Nm




*available with B100, biodiesel



Oil change interval
Up to 100,000 km, or once every two years with VDS5.



Fuel prerequisites

EN 590 (EU norm) max 10 ppm sulphur.

Engine-mounted power take-off
Ratio 1:1, up to 600 Nm torque output both when driving and standing still.



Engine-Mounted Power Take-Off



Torque output

Ratio

PTER-DIN

600 Nm*

1:1



PTER-1400

600 Nm*

1:1



PTER-100

600 Nm*

1:1




* torque output both when driving and standing still. With AT2412 max. torque while driving = 150 Nm.

Manual gearboxes


The manual gearboxes are operated with servo assistance. The short gear lever, which is integrated into the instrument panel, is vibration-free and gear lever movement is short and crisp. The gearboxes can be specified with a power take-off.

Type

Top gear

Max torque (Nm)GCW approval (tonnes)

ZTO1006

6

1050

32.5

ZTO1109

9120044

STO8006

685024


Automatic gearboxes


6-speed automatic gearbox or 8-speed automatic gearbox with three drive modes.

Type

Top gear

Max torque (Nm)GCW approval (tonnes)

AL306

6

1600

36

8AP1200

8

1200

36



Rear axles

Type

Axle

Gear

Max torque (Nm)

Max axle/bogie load (t)

GCW approval (t)

Single reduction

RSS0819A

Solo

Hypoid

950

8.5

19

RSS1125A

Solo

Hypoid

1050

11.5

25

RSS1132A

Solo

Hypoid

1050

11.5

32.5

RSS1344C

Solo

Hypoid

2600

13

44



Hub reduction

RSH1140C*

Solo

Hypoid

1200

11

40



* Only for Volvo FL 4×4



Rear axle ratios

RSS0819A

RSS1125A

RSS1132A

RSH1140C*

RSS1344C

3.31:1

3.58:1

3.78:1

5.77:1

3.70

3.58:1

3.73:1

4.13:1

5.86:1

4.11

3.73:1

3.90:1

4.50:1

6.18:1

4.63

3.91:1

4.11:1

5.14:1

6.31:1

5.29:1

4.10:1

4.33:1

5.67:1

6.66:1

6.17:1

4.30:1

4.63:1

6.17:1





4.56:1

4.88:1







4.88:1

5.13:1







5.13:1

5.29:1







5.29:1

5.57:1







5.57:1

5.86:1







5.86:1










*Only for Volvo FL 4x4



D5 210 hp

D5 240 hp

D8 250 hp

D8 280 hp

D8 320 hp

Gearboxes



8AP1200

●●●●●

AL306

  ●●

STO8006

●

ZTO1006

 ●●●

ZTO1109

  ●●


Single reduction axles



RSS0819A

●●

RSS1125A

●●●●

RSS1132A

●●●●

RSS1344C

   ●●


Hub reduction axles



RSH1140C

  ●●


*Only for Volvo FL 4x4

There is a wide range of clutch-independent and clutch-dependent power take-offs to drive all sorts of body equipment.

Engine-mounted



PTER-DIN: Rear-mounted engine power take-off for direct drive of a hydraulic pump.
PTER1400: Rear-mounted engine power take-off with flange connection for hydraulic pump.
PTER100: Rear-mounted engine power take-off with flange connection for hydraulic pump.

Gearbox-mounted



PTR-HF/FH/ZF: Connecting flange attachment and low-rev or high-rev.
PTR-HP/PH/ZF: Connecting pump attachment and low-rev or high-rev.

Cab

Find specifications about cab measurements, cab heights above the ground and cab features

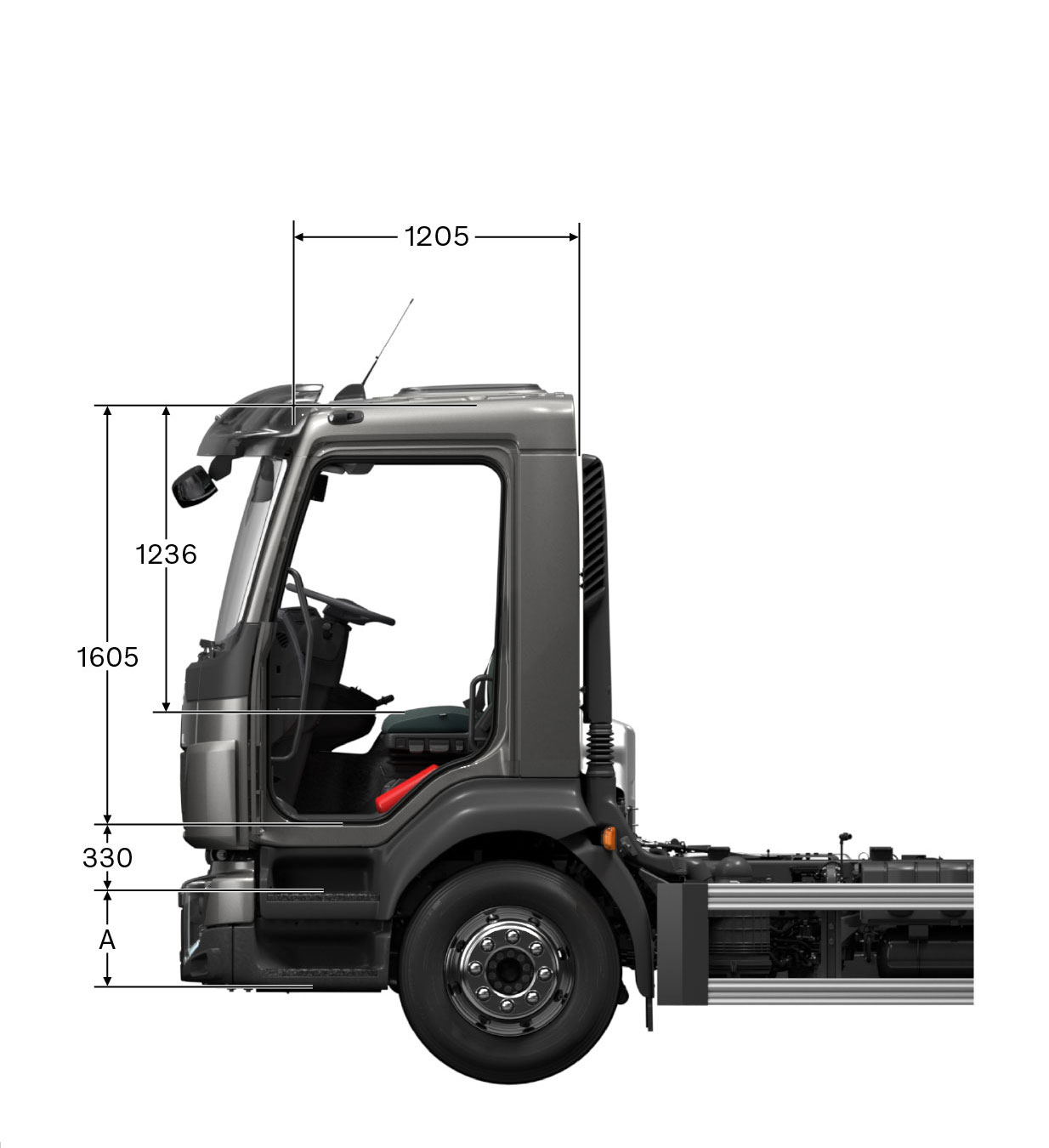

Volvo FL Day cab

Day cab


Day cab with comfortable and ergonomic driver area. Interior height 1605 mm

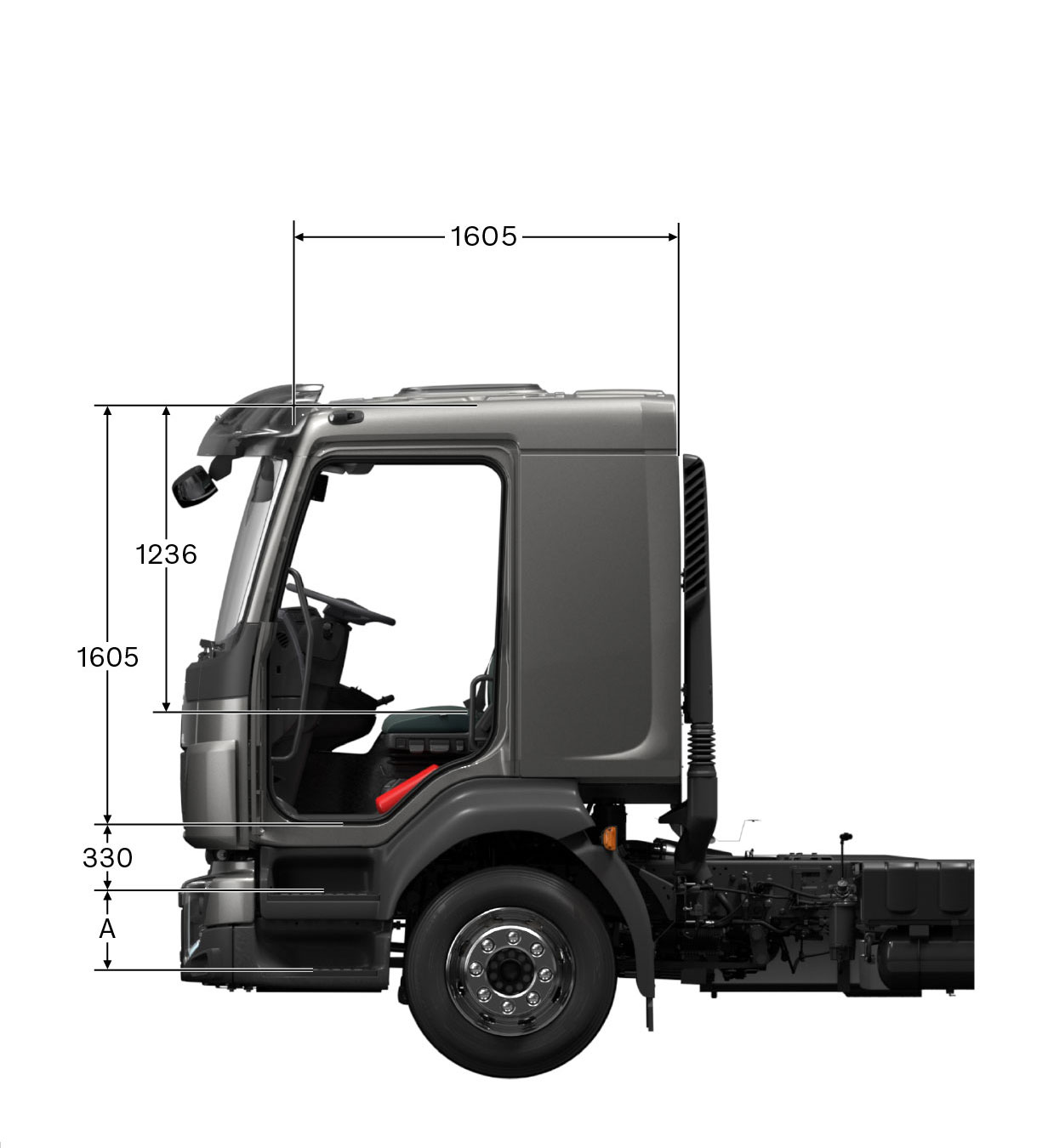

short sleeper cab

Short sleeper cab


Short sleeper cab offers extra space that can be equipped with a bed for one person or be used as office space with extra storage compartments. Interior height 1605 mm.

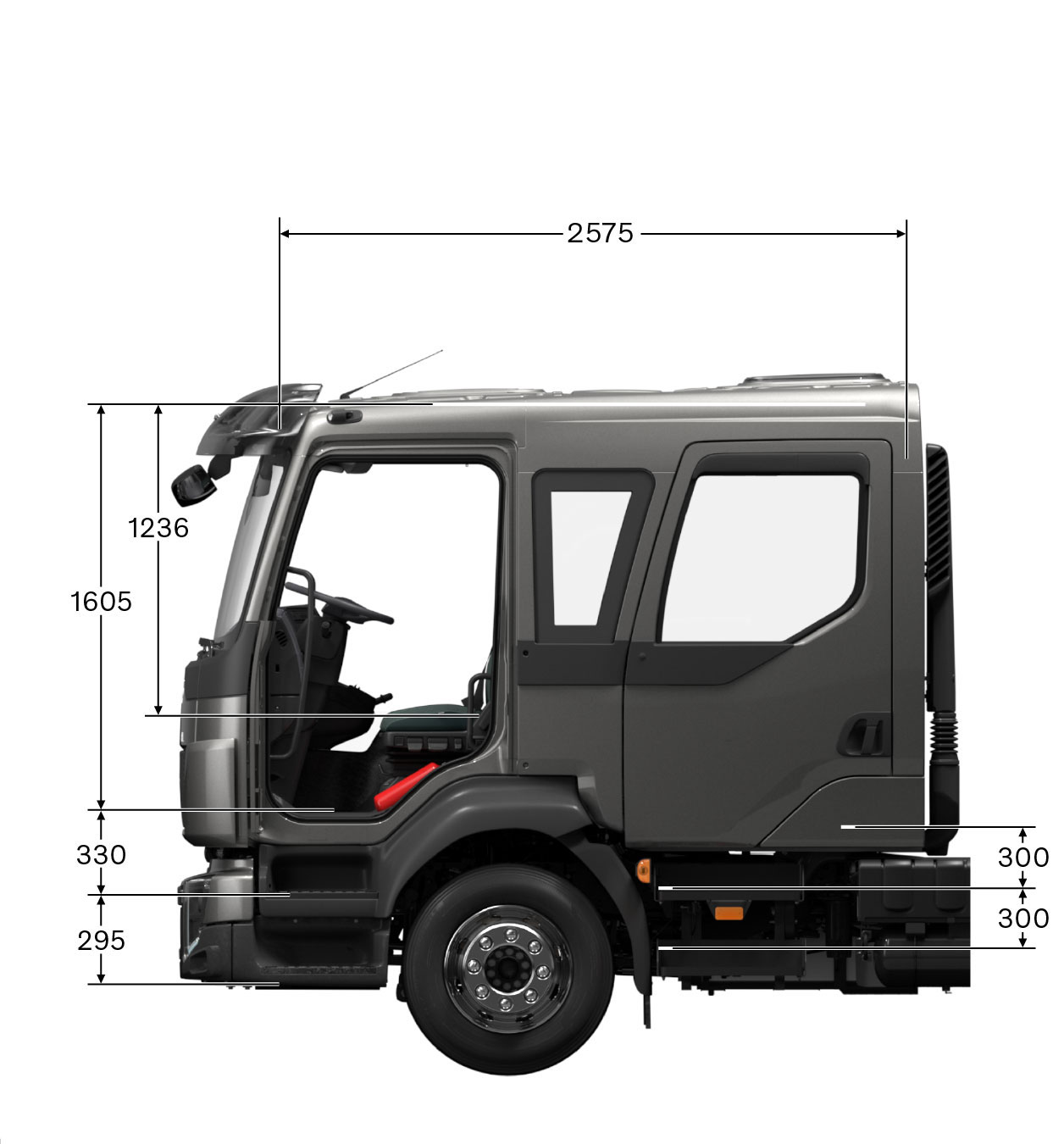

volvo-crew-cab

Crew cab


Crew cab with ample space for several additional passengers up to 7 persons. Interior height 1605 mm.

Cab suspension

The front of the cab has rubber cushion suspension for minor vertical movement while the rear has coil spring and shock absorber suspension.


Cab colours

Available in 300 fixed variants. Additional colours can be ordered.


Driver’s seat

Three different levels of comfort: Comfort, Standard and Economy. All three feature backrest, length, height and front tilt adjustment and integrated headrests.


Passenger seat

Three different levels of comfort: Standard, Economy or Basic.


Beds

The bed is offered in one or two pieces and is either 580 mm  or 780 mm wide. There’s an optional bed protection bar and a smoke detector.


Interior storage

The cab has many practical and easily accessible compartments for storage of documents and personal belongings. Above the windscreen you'll find two storage units protected by a lid or net, as well as four DIN compartments. A number of different storage and tunnel boxes, writing pad and clothes hooks can be specified as options.


Roof hatch

The cab can be equipped with a roof hatch that can be opened 50 millimetres. The hatch can be manually or electrically operated.


Steering wheel

The steering wheel has a diameter of 460 or 500 millimetres, depending on truck configuration, and can be pneumatically adjusted to the desired position


Climate system

The cab heating system is available in two variants: manually controlled with heater only, or manually controlled heater and air
conditioning. There’s also a 2 kW parking heater system available that can be specified as an option.


Seat upholstery

Comfort textile.


Wall upholstery

Comfort textile.

Cab heating

The cab heating system is available in two variants: manually controlled with heater only, or manually controlled heater and air conditioning. There’s also a 2 kW parking heater system available that can be specified as an option.


Interior storage

The cab has many practical and easily accessible compartments for storage of documents and personal belongings. Above the windscreen you'll find two storage units protected by a lid or net, as well as four DIN compartments. A number of different storage and tunnel boxes, writing pad and clothes hooks can be specified as options.


Horns

There’s a choice of two extra horn types – either two roof-mounted horns, pneumatically operated, or one electrical horn under the front lid.


Bed (comfort cab)

The bed is offered in one or two pieces and is either 580 millimetres or 780 millimetres wide. There’s an optional bed protection bar and a smoke detector.

Chassis

Find specifications about chassis heights, max front axle load, rear suspension, coupling heights, tractors, chassis features and brakes.

Low

approx 810–830 mm

Med

approx 860 mm

High

approx 950 mm

X-High

approx 960 mm

XX-High*

approx 1175 mm


* Only for Volvo FL 4×4

 AirLeaf
Low4.0/4.5 t4.2
Med 4.5/5.0/5.8 t
High 5.0/5.6/5.8/6.3 t
X-high7.1 t7.1/7.5 t
XX-high 5.6 t


TypeSuspensionAxle LoadReduction
RAD - L80Leaf11.5tSingle
RAD - KRAir13tSingle
RAD - A2VAir10.5tSingle


Towbars for connecting trailers are avaialble.

Fuel tanks
Fuel tanks are available in plastic, steel or aluminium. Fuel volume varies from 80 to 300 litres. In addition, there is a combination of two 215-litre tanks available, providing a total volume of 430 litres.

AdBlue tanks
The AdBlue tank is made of plastic and the volume is 32 litres. The AdBlue pump is integrated in tank module. There is one variant for vehicles with right-hand mounted fuel tank (ADTP-R), and one for vehicles with left-hand mounted tank (ADTP-L).

The Volvo FL has pneumatic brakes with ventilated discs both front and rear. The EBS (Electronically controlled Brake System) anti-locking disc-brake system provides both faster and safer braking response and promotes reduced brake wear. The system includes features such as ABS, anti-locking brakes, a differential lock and Brake Blending. With Brake Blending, the system exploits the vehicle’s various brakes for more uniform brake application and reduces wear on the wheel brakes and tires. The extended EBS package includes a function that facilitates starting on slopes. The brake discs are available in different sizes depending on the application.

EBS Medium

In addition to the EBS Standard package, EBS Medium adds the following features:



EBS Status Control

EBS status monitoring via the TEA2+ vehicle electronic system and Volvo Tech Tool.



Hill Start Aid

The brakes are only released once there is sufficient engine torque to propel the vehicle forward.



Lining Wear Analysis

Brake lining warning – calculates the remaining mileage available with the current brake linings. (Only for disc brakes.)



Automatic Parking Brake Release

The parking brake is released when the driver pushes the accelerator pedal and a gear is selected.

Hydraulic retarder for AL306 gearboxes
The compact, integrated hydraulic retarder (RET-HYDR and RET-TPT variants) is mounted on the gearbox. The max effect is 400 kW.

Maximum ratio in the torque converter (TC421) is 1.77:1.

In addition to the program packages there are the following options:

ESC (Electronic Stability Control)
The brake stability system applies the brakes individually on each wheel, thereby providing stability for the entire vehicle combination and counteracting jack-knifing, rollover and trailer swing. ESC fulfils the legislation of Electronic Vehicle Stability Control, and is available for 2- and 3-axle vehicles.

Emergency Brake Light

When panic braking from speeds above 50 km/h, the brake lights flash with four flashes per second.



Hydraulic retarder

Gearbox-mounted compact retarder with a max effect of 440 kW.

Data sheets

Data - everything you'll need. Download data sheets in PDF format for the Volvo FL from the following links.

  • FL Rigid
FL Rigid
